High Precision Roll Forming Machine With 18 Forming Stations 5.5Kw Motor For 0.3-0.8mm Downspout Pipes

  • 1
  • 2

Brand Name : METALIGN

Model Number : DSP

Certification : CE,ISO,etc

Place of Origin : CHINA

MOQ : 1 set

Price : USD1,000-700,000. Based on customization.

Payment Terms : L/C,T/T

Supply Ability : 30 sets per month

Delivery Time : 30 days

Packaging Details : Industrial plastic film wrapping, secured with steel wire.

Product name : Hydraulic Cut Roll Former With Embossed Ribs And Exterior Lock Edge Square Downspout

Key words : Metal Square Downspout Pipe / Cold Roll Forming Machine

Profile : Downspout Pipe

Application : Roof Water Collection / Landscaping Drain Systems / Gutter Downspout Systems

Material type : PPGI/PPGL/GI/GL Steel Coils

Material thickness : 0.3-0.8mm

Forming speed : 15-20m/min

Main motor power : 5.5Kw

Forming stations : 18

Driving system : Chain

Frame structure : Wall panel

Shaft diameter : 70mm

Machine condition : Brand new

Shaft material : #45 steel quenched 55-60℃

Roller material : High grade #45 steel , surface with hard chrome

Display language : English/Spanish/Russian/French,etc, customizable

Control technique : PLC+Touch Screen

Delivery time : 30 days

Contact Now

High Precision Roll Forming Machine With 18 Forming Stations 5.5Kw Motor For 0.3-0.8mm Downspout Pipes

1. Overview


1.1 Production Line

This roll forming production line targets manufacturers of metal square downspouts. Ideal for residential, commercial, and industrial drainage systems, it provides high-quality embossed and lock-edge pipes. The chain-driven, wall-frame machine ensures stable, continuous production with high precision, reduced labor, and versatile customization for diverse markets.


1.2 Profile
The square downspout pipe is made from 1.2-2.0mm galvanized steel, formed via cold roll forming. Features embossed ribs for added strength and exterior lock edges for tight sealing. Suitable for rainwater drainage in residential, commercial, and industrial buildings. Customizable lengths, rib patterns, and profiles enhance structural rigidity and aesthetic appeal.
Material: Galvanized Steel / PPGI / Aluminum Thickness: 0.3-0.8mm
Yield strength: 200 - 350 Mpa Tensil stress: 200 -350 Mpa

High Precision Roll Forming Machine With 18 Forming Stations 5.5Kw Motor For 0.3-0.8mm Downspout Pipes

High Precision Roll Forming Machine With 18 Forming Stations 5.5Kw Motor For 0.3-0.8mm Downspout Pipes


1.3 Production Process

Flow Chart:

Decoiler → Guide → Roll Forming Machine → Hydraulic Cutter → Out Table

Process:

Steel coil feeds through guide rollers into the wall-frame, chain-driven roll former. Early forming stations emboss ribs to enhance strength. Subsequent stations shape square profiles with precise exterior lock edges. Hydraulic cutter accurately trims lengths. Out table collects finished pipes. This process ensures high precision, structural integrity, and consistent production efficiency.


1.4 Key Focus

Wall-frame, chain-driven roll former ensures stable, long-term operation and minimal maintenance.

Embossed ribs improve pipe rigidity and resistance to bending or compression.

Exterior lock edges enhance sealing, weatherproofing, and wind resistance.

Hydraulic cutting delivers precise, consistent pipe lengths with reduced material waste.

High automation reduces labor, increases output, and allows flexible customization.


2. Technical Parameters

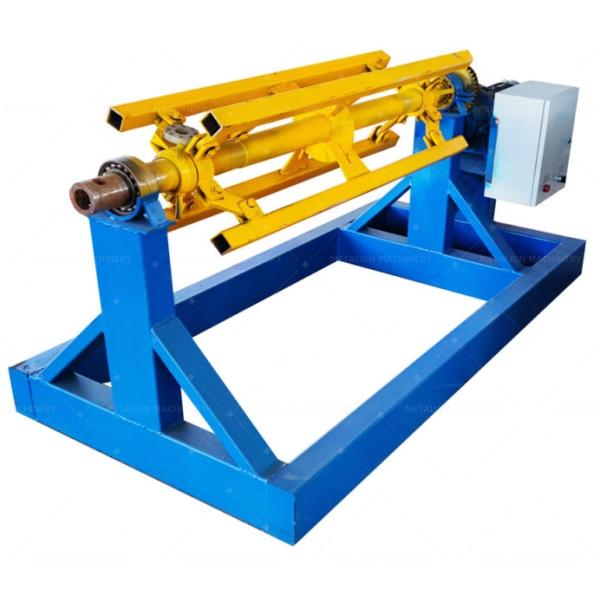

2.1 Decoiler
Structure Double-support High Precision Roll Forming Machine With 18 Forming Stations 5.5Kw Motor For 0.3-0.8mm Downspout Pipes
Working Form Manual, motorized, or hydraulic
Loading Capacity 5T/7T/10T, customizable
Coil Width 1250mm, customizable
Inner Diameter Φ450 – Φ550 mm
Out Diameter 1500 mm
Model DC-MU1


2.2 Optional Upgrade: Decoiler
High Precision Roll Forming Machine With 18 Forming Stations 5.5Kw Motor For 0.3-0.8mm Downspout Pipes High Precision Roll Forming Machine With 18 Forming Stations 5.5Kw Motor For 0.3-0.8mm Downspout Pipes High Precision Roll Forming Machine With 18 Forming Stations 5.5Kw Motor For 0.3-0.8mm Downspout Pipes
Motorized Decoiler Stand structure decoiler, motorized or hydraulic Hydraulic decoiler with loading car


2.3 Guiding Device With Pre-Cut Broaching Shear
Guiding Roller Adujust the coil feeding width High Precision Roll Forming Machine With 18 Forming Stations 5.5Kw Motor For 0.3-0.8mm Downspout Pipes
Pre-cut Broaching Shear Cut the steel coil before roll forming
Digital Display See the feeding width directly


2.4 Roll Forming Machine
Working Speed Around 20 m/min High Precision Roll Forming Machine With 18 Forming Stations 5.5Kw Motor For 0.3-0.8mm Downspout Pipes
Structure Wall panel type. Optional: Cast-iron stands or guide pillar
Driving System Chain system. Optional: Gearbox
No. of Forming Stations 18 stands
Shaft Diameter 70mm solid shaft
Motor Power 5.5 Kw High Precision Roll Forming Machine With 18 Forming Stations 5.5Kw Motor For 0.3-0.8mm Downspout Pipes
Roller Material

45# steel polished and chromed HRC58-62°
Shaft Material High grade 45# steel polished(CNC lathe)
Steel Coil Material PPGI or GI
Steel Coil Thickness 0.25-0.8mm


2.5 Optional Upgrade: Cover
High Precision Roll Forming Machine With 18 Forming Stations 5.5Kw Motor For 0.3-0.8mm Downspout Pipes High Precision Roll Forming Machine With 18 Forming Stations 5.5Kw Motor For 0.3-0.8mm Downspout Pipes High Precision Roll Forming Machine With 18 Forming Stations 5.5Kw Motor For 0.3-0.8mm Downspout Pipes
Mounted On The Inside: No Cover Required Solid Cover For Chain Mesh Safety Cover


2.6 Cutter
Common Power Type Hydraulic. Optional: motor type. High Precision Roll Forming Machine With 18 Forming Stations 5.5Kw Motor For 0.3-0.8mm Downspout Pipes
Hydraulic Power

4-5.5Kw, customizable
Blade Material

Cr12 Mov
Hardness

With quenched treatment HRC 58 – 62°


2.7 Product Collection
Solution 1

Run-out table

 Solution 2 Auto stacker
Power Type

Non-powered, mainly manual handling

 Power Type Motorized, 3Kw
Dimension Length 4m, customizable Dimension Length 4m-6m, customizable
High Precision Roll Forming Machine With 18 Forming Stations 5.5Kw Motor For 0.3-0.8mm Downspout Pipes High Precision Roll Forming Machine With 18 Forming Stations 5.5Kw Motor For 0.3-0.8mm Downspout Pipes


2.8 PLC Control Cabinet
PLC Brand Delta, customizable Power Supply 380v, 50HZ, 3Phase (It depends on customer requirement)
Encoder Brand Omron, customizable Language Chinese + English, Spanish, French, Russian, etc
Touch Screen MCGS, customizable Operation type Manual /auto two-type switch
Hanging Arm Type Saving Space Standing Type greater component integration and flexible positioning

High Precision Roll Forming Machine With 18 Forming Stations 5.5Kw Motor For 0.3-0.8mm Downspout Pipes

Hanging-Arm Control Box

High Precision Roll Forming Machine With 18 Forming Stations 5.5Kw Motor For 0.3-0.8mm Downspout Pipes

Standing Control Box


2.9 Hydraulic Power Unit (HPU)

Motor Power

 5.5Kw High Precision Roll Forming Machine With 18 Forming Stations 5.5Kw Motor For 0.3-0.8mm Downspout Pipes
Oil Required

N32 or N46 hydraulic oil is available

Design

The hydraulic station has a fan cooling system
Optional

It can be installed on or inside the roll former to save space



2.10 Analysis
Decoiler Smooth coil feeding, adjustable for multiple widths.
Reduces material waste, ensures stable tension control.
Guide Aligns steel into forming machine precisely.
Minimizes deviation and ensures dimensional accuracy.
Roll Forming Machine Wall-frame structure ensures rigidity and stability.
Chain-driven for continuous, reliable operation.
Early stations emboss ribs for increased strength.
Exterior lock edges improve sealing and wind resistance.
Hydraulic Cutter Provides accurate length cutting for consistent products.
Reduces material waste, adaptable to multiple thicknesses.
Out Table Collects finished pipes safely and efficiently.
Optional automated stacking reduces labor and enhances safety.


3. Production Line Components

Component Quantity
Hydraulic Decoiler 1 set
Roll Former 1 set
Hydraulic Cutter 1 set
Out Table 2 sets
PLC Cabinet 1 set
Hydraulic Station 1 set


4. Customization Options

Customers can customize embossing patterns, lock-edge styles, pipe dimensions, thickness (1.2-2.0mm), production speed, and hydraulic cutting lengths. Optional features include automated stacking on out tables, adjustable forming stations for different square sizes, and integration of pre-punched holes for downspout accessories or connectors.
